Stacked lithium-ion battery
Roll over image to zoom in
৳ 260,000.00

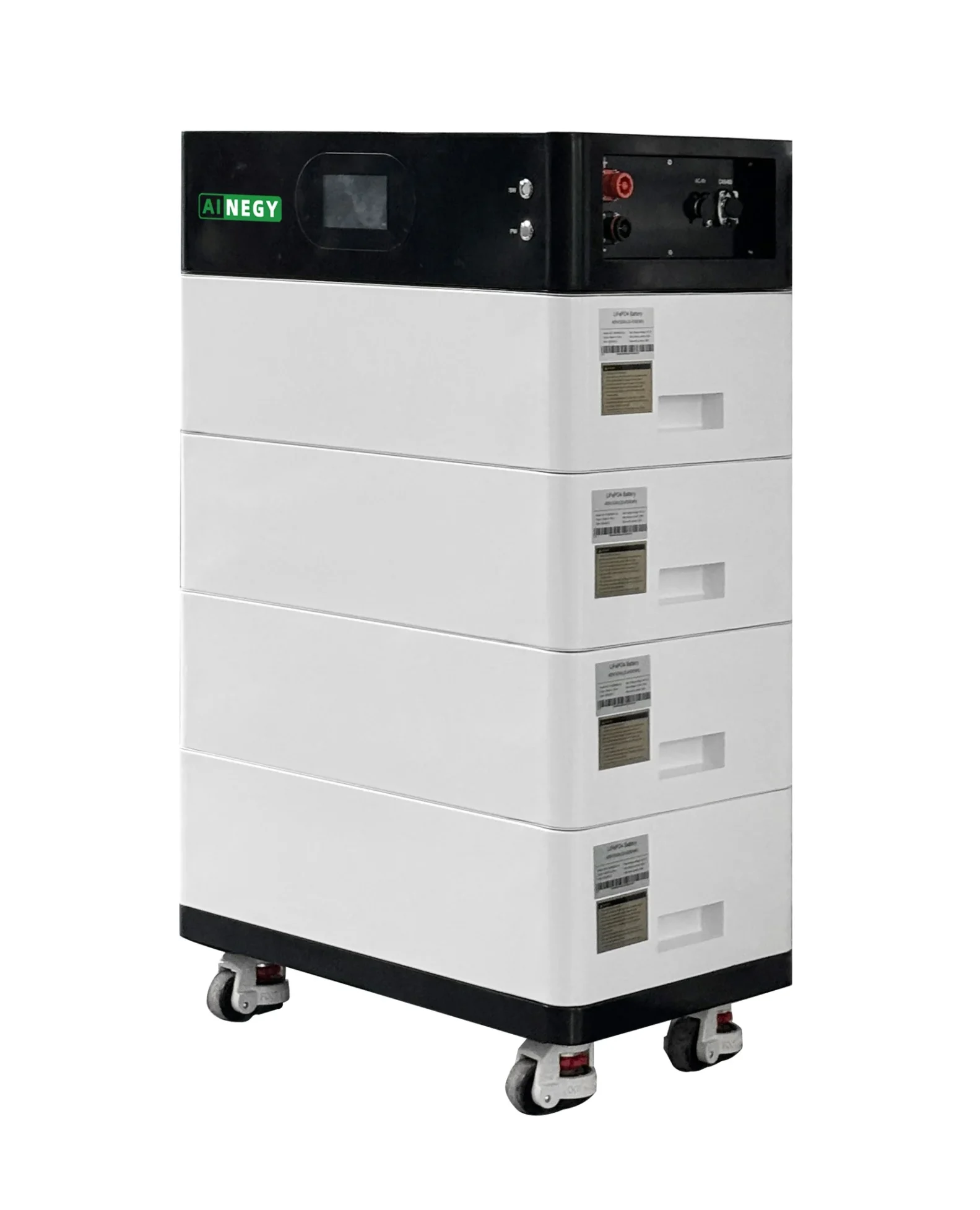

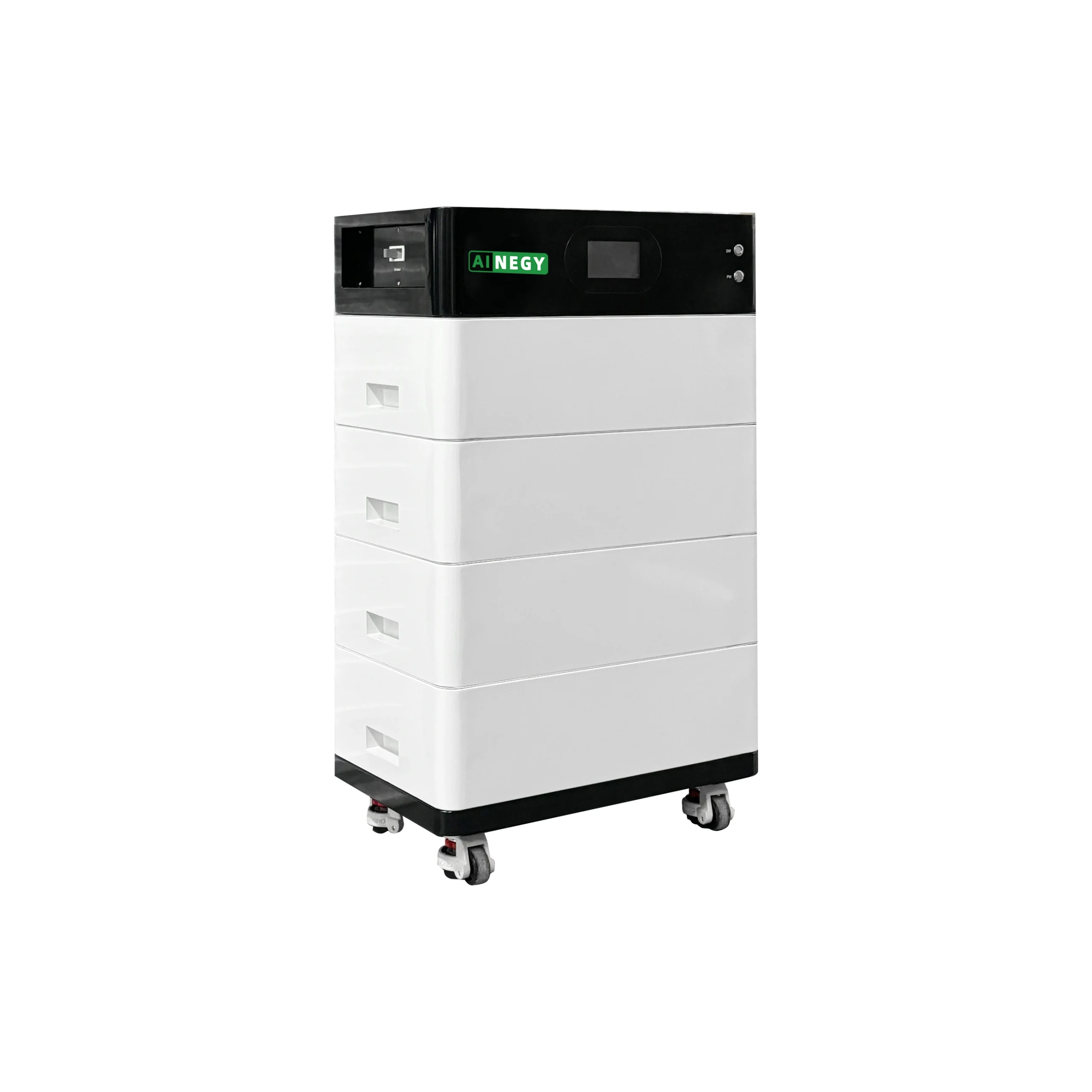

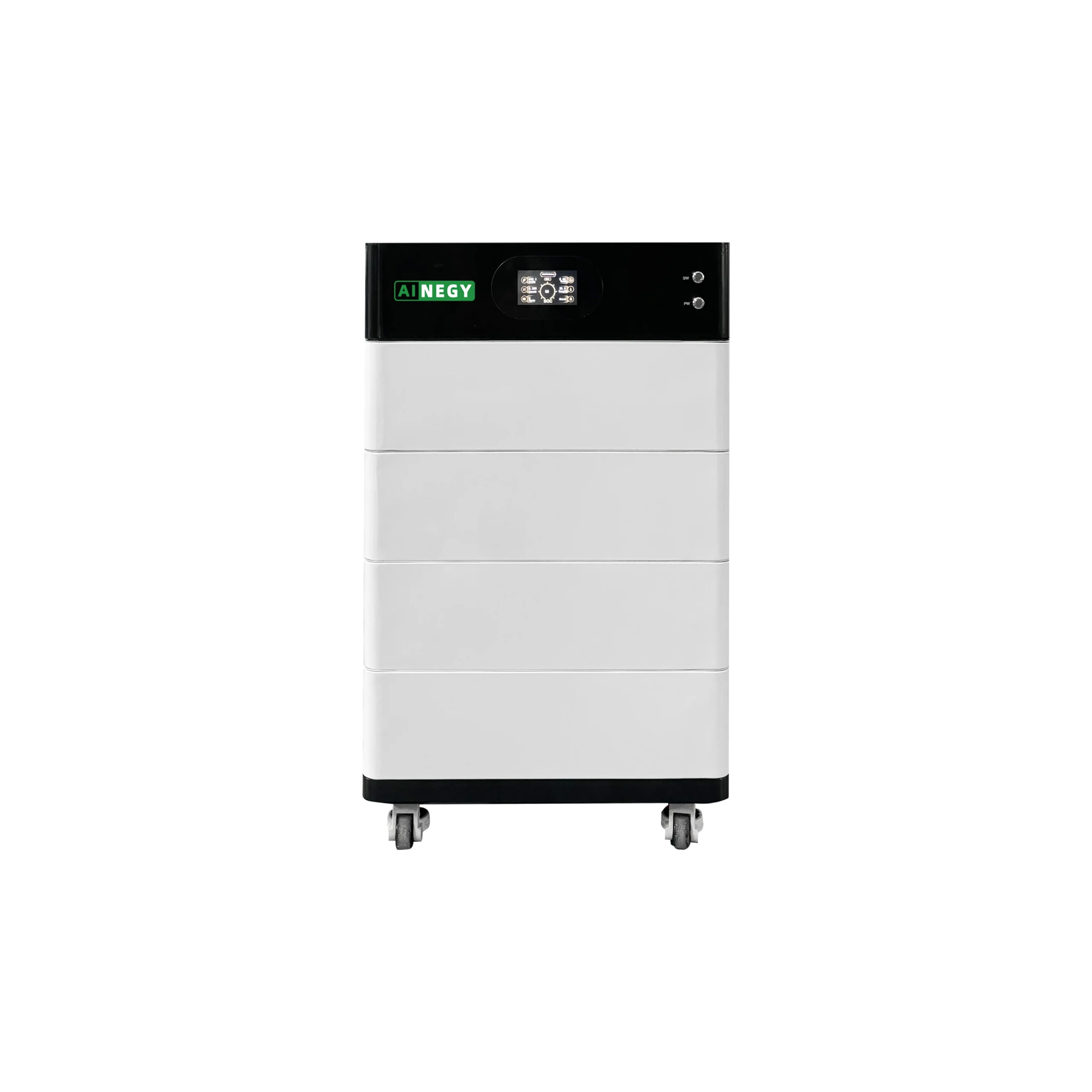

High voltage stacked lithium-ion battery 409V for Residential Energy Storage
This is a high-voltage stacked lithium-ion battery designed for home energy storage. The LCD display design allows intuitive product information, and can be freely assembled according to power needs. It is plug-and-play and very convenient.
● Automotive grade process
● Rated capacity: 50Ah
● Host integrated high voltage module
● Power expansion freely
● Easy installtion
Product Parameter
| Model Name | AIN-409V-50Ah |
| Model | 15KWh |
| Rated Capacity | 50Ah |
| Nominal Voltage | 409V |
| End-of-Charge Voltage | 466V |
| End-of-discharge Voltage | 339V |
| Max. Charge Current | 50A |
| Max. Discharge Current | 50A |
| Communication | RS485/CAN |
| Shell Material/Color | Metal/ White (color optional) |
| Size(mm) | 580*360*870mm |
| Weight(Kg) | 188(about) |
| Work Temperature Range | Charge： 0℃-50℃ Discharge：-15℃-60℃ |
System working principle diagram
Prduct Advantage
● Automotive grade process
● Touch screen display
● Power expansion freely
● Long cycle life
● Host integrated high voltage module
● Easy to move
