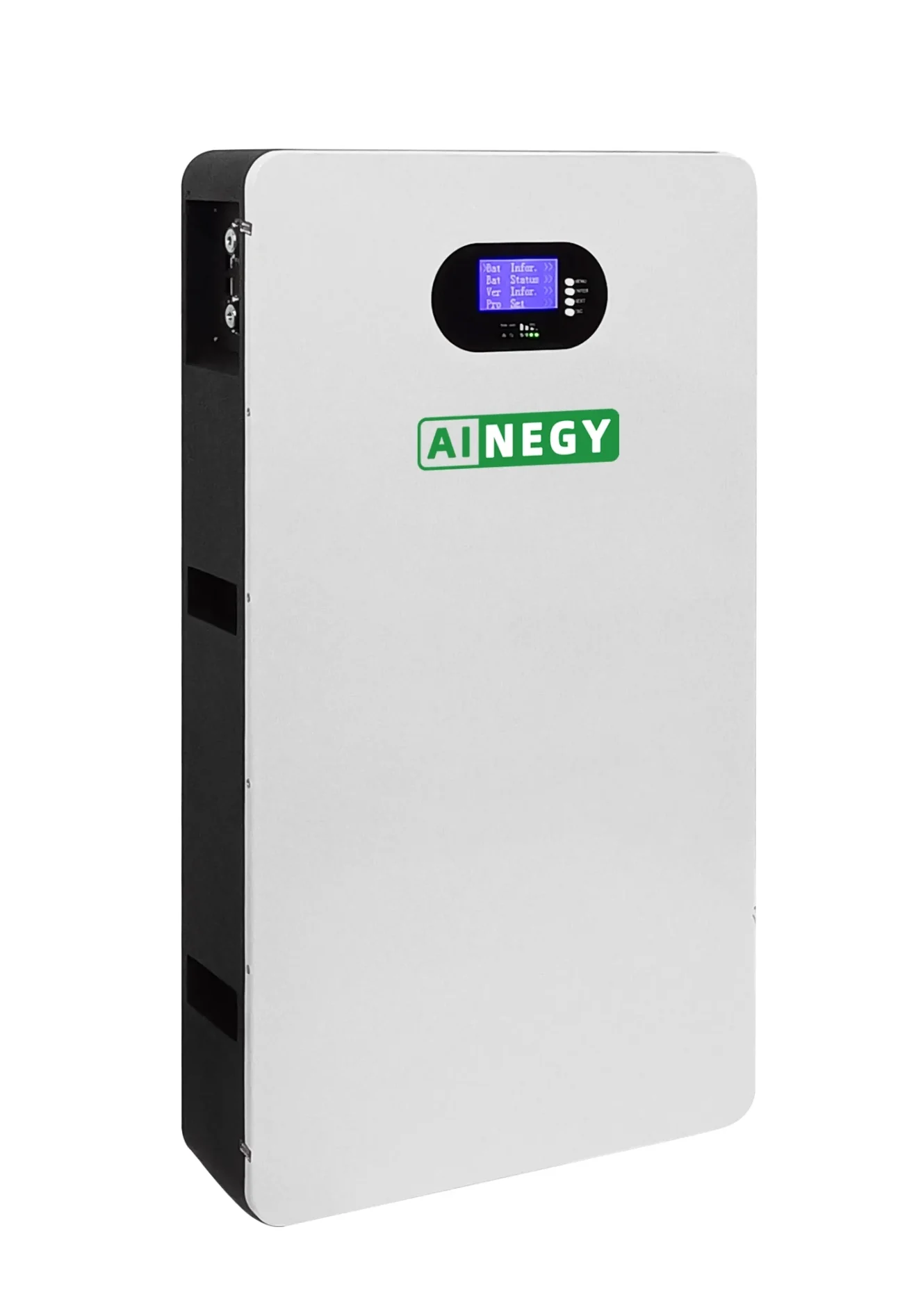

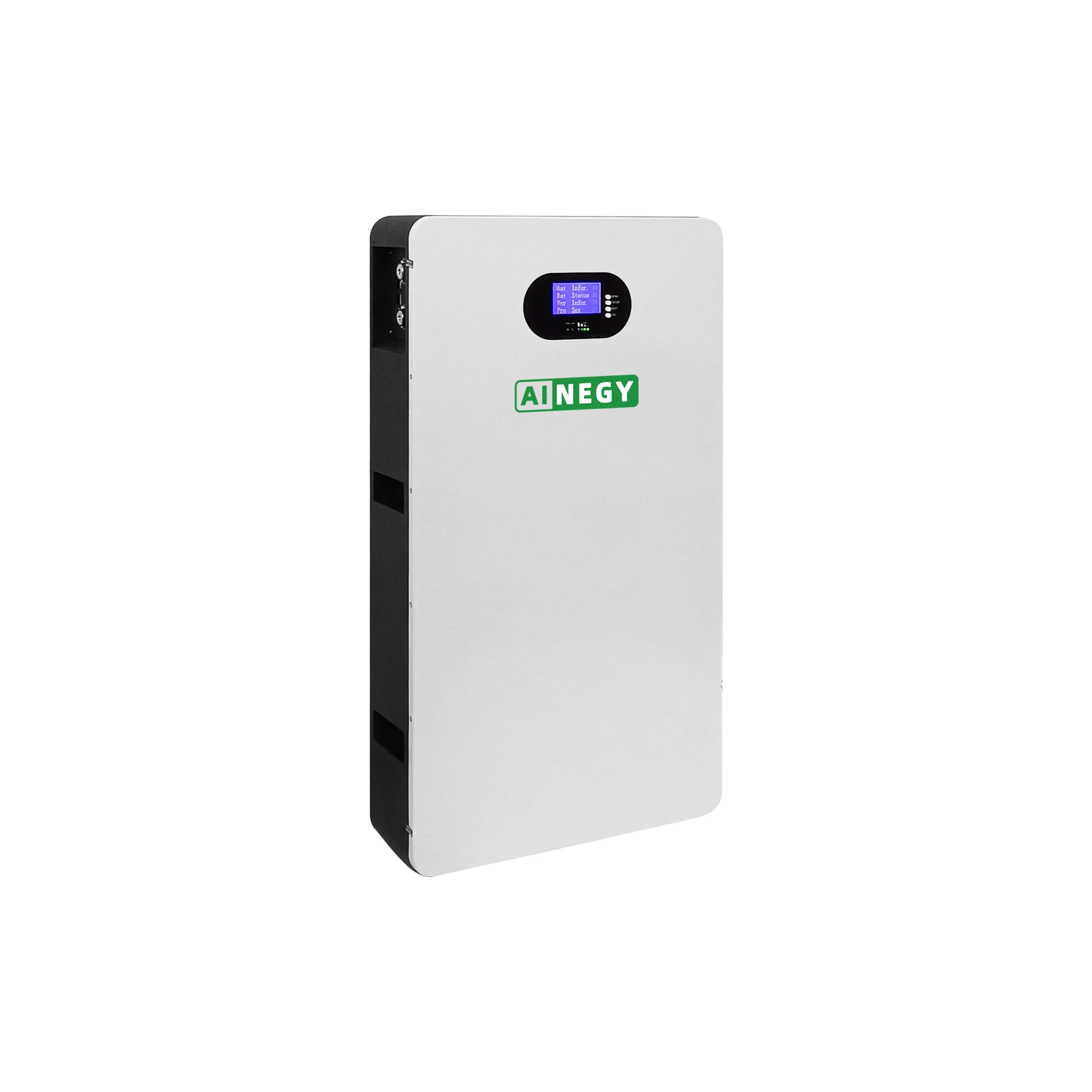

Wall-mount Lifepo4 ESS
Roll over image to zoom in
৳ 159,999.00
Wall-mount Lifepo4 Energy Storage Battery 51.2V 200Ah for Home energy storage system
This is a wall-mounted lithium battery product designed for home energy storage. It offers a variety of designs with multiple appearance options and ultra-thin design. It is compatible with 20 inverter protocols can be selected on the display, has a long lifespan.
● Ultra slim design
● 20 inverter protocols can be selected on the display
● Support 15 in parallel
● Nominal voltage: 51.2V
● Rated capacity: 200Ah
| Model Name | AIN-WM51100A-A1 |
| Battery Style | 51.2V200Ah |
| Energy | 9.6KWh/10.24KWh |
| Nominal Voltage | 48/51.2V |
| Rated Capacity | 200Ah |
| End-of-charge Voltage | 54.0V/58.0V |
| End-of-discharge Voltage | 39.0/42.0V |
| Standard Charge Current | 50A |
| Max. Charge Current | 100A |
| Standard Discharge Current |
100A(200A) |
| Max. Discharge Current | 100A(200A) |
| Max. Peak Current | 200A |
| Charge/ Discharge Interface | M8 Terminal |
| Communication Interface | RS485/ CAN |
| Shell Material/ Color | Metal/ (White + Black) |
| Size | 850*466*145mm |
| Weight | 79/84Kg |
| Work Temperature Range | Charge：0℃-50℃ Discharge：-15℃-60℃ |
Prduct Advantage
● Long cycle life
● Ultra slim design
● Compatible with 20+ inverters
● Nominal voltage:51.2V
● Support 15 in parallel
● Intelligence LCD can choose inverter
